Qt Quick Item as Texture Example

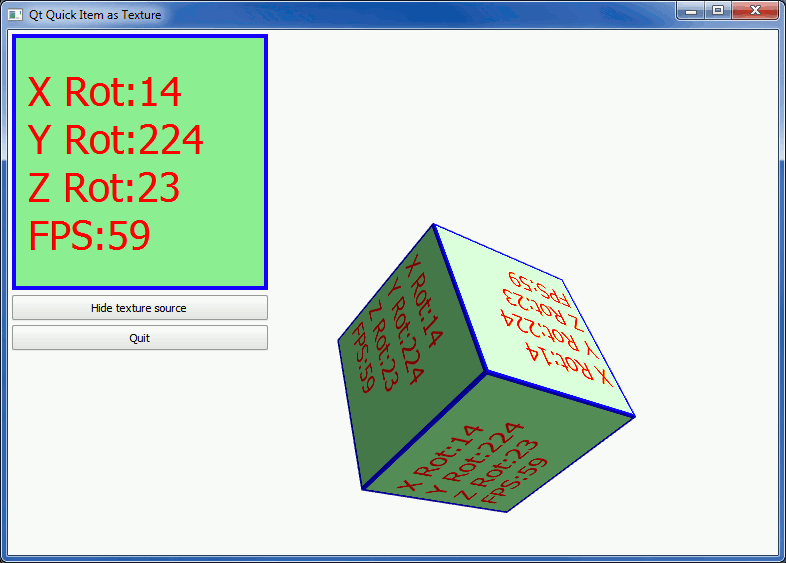

A simple cube with a Qt Quick item as a texture.

The Qt Quick Item as Texture example shows how to use other Qt Quick items as a texture source for Qt Canvas3D textures.

Using Qt Quick Item as a Texture

First we create a Rectangle with a label that displays the current frame rate and rotation values of the cube:

 Rectangle {
     id: textureSource
     color: "lightgreen"
     width: 256
     height: 256
     border.color: "blue"
     border.width: 4
     layer.enabled: true
     layer.smooth: true
     Label {
         anchors.fill: parent
         anchors.margins: 16
         text: "X Rot:" + (canvas3d.xRotAnim | 0) + "\n"
             + "Y Rot:" + (canvas3d.yRotAnim | 0) + "\n"
             + "Z Rot:" + (canvas3d.zRotAnim | 0) + "\n"
             + "FPS:" + canvas3d.fps
         color: "red"
         font.pointSize: 26
         horizontalAlignment: Text.AlignLeft
         verticalAlignment: Text.AlignVCenter
     }
 }

We want to use the above Rectangle as the texture on our 3D cube. As a Rectangle item doesn't implement QQuickItem::textureProvider() by itself, we make it layered by setting the layer.enabled property to true.

To create a Canvas3DTexture out of our layered Rectangle, we create a QTCANVAS3D_texture_provider extension and the texture in the initializeGL() function in our JavaScript implementation:

 canvasTextureProvider = gl.getExtension("QTCANVAS3D_texture_provider");
 cubeTexture = canvasTextureProvider.createTextureFromSource(textureSourceItem);

Once the cubeTexture item is created, it can be used like any other texture item in the JavaScript.

Note: The method of creating the texture from a Qt Quick item differs from how one would create texture from an HTML item in WebGL API. Textures created with QTCANVAS3D_texture_provider extension support automatic live updates, without having to call textureImage2D each frame to re-upload fresh texture data from the item.
